The 190 Window Series

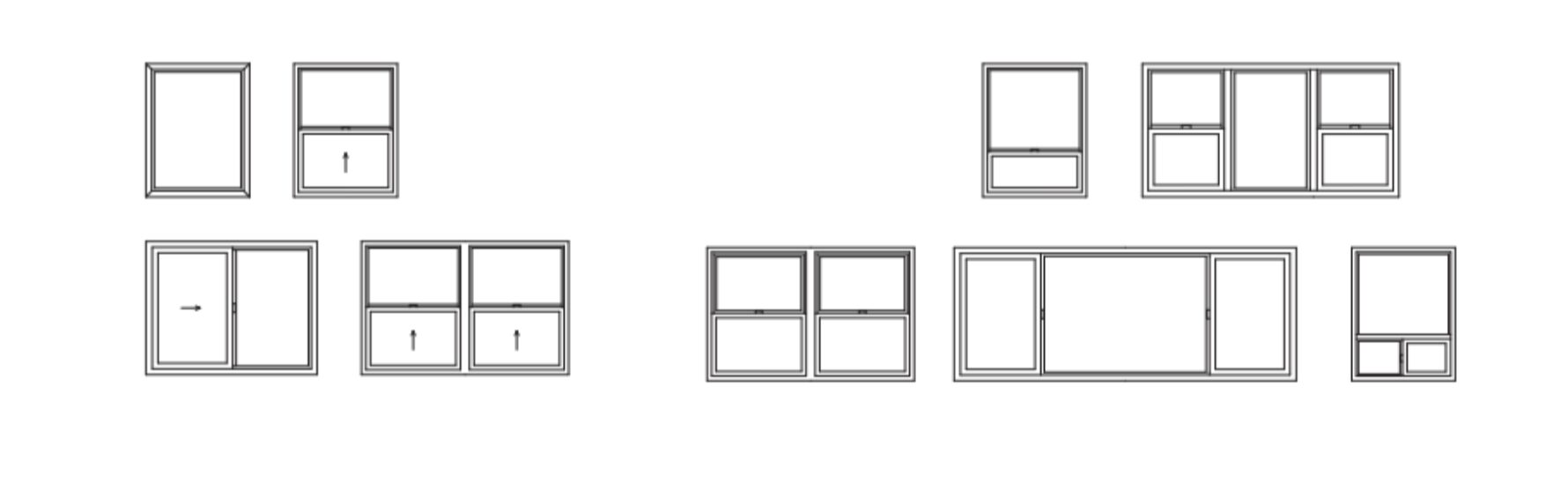

Engineered for versatility and long-term reliability, the 190 Series from Target Windows and Doors delivers strength, simplicity, and superior value. Available in hung, slider, and fixed configurations, this system is ideal for both new construction and replacement projects.
- 3/4" (19mm) Glazing Capability
- Designed with insulated glass featuring industry leading Duralite™ spacer system
- Integral Nailfin
- Innovative Pocket Sill design
-
Frame Accessory Grooves to allow for J Channel brick mold and various other window accessories
- Die cast metal locks (ADA compliant locks available)
- WOCDs available
- Industry-leading extruded aluminum screen frames and flex screens available
- Multi-Chambered Main Profiles
- Versatile Frame Design
Efficient, High-Performing Engineering
The 190 Series combines the efficiency of a side-load design with high-performance engineering. Using common sash components across models allows for easier fabrication, reduced inventory, and lower production costs — without sacrificing quality.
Pocket Sash Design:
Enhances structure performance allowing the 190 to meet LC-PG40 structural ratings. One of the highest rated vinyl new construction windows on the market. Fewer exposed parts mean less maintenance and lasting performance. The Target 190 Pocket sash fits neatly into the frame for a modern appearance that minimizes potential for damage during installation and operator use for the lifetime of the window.
Industry leading spiral balance system:
Stainless steel constant force spiral balance system allows for smooth effortless operation, Quiet Function and Low Maintenance. Spiral balances provide even tension throughout
the sash’s movement, ensuring windows open and close effortlessly every time. The 190
system provides even tension throughout the sash’s movement, ensuring windows open and close effortlessly every time, without bulky hardware.
Exceptional Energy efficiency:
The 190 Window was designed to deliver one of the most cost-
effective vinyl window solutions on the market, while achieving industry leading energy performance. Target Windows & Doors manufactures their own insulated glass units using the highest quality glass suppliers in the world. Low-E 272 Cardinal Glass is standard for the 190, with available options including 366/LowE, I89, Laminated Sound proofing glass, and tempered to provide a glass solution that meets a wide range of needs. The 190 window can achieve a U-Factor of .24 and a SHGC of .20.
Enhanced Features:
The Target 190 Series achieves full egress on standard 3-0 and 5-0 windows, giving GCs, contractors, and remodelers the advantage of standardized sizing and reduced installation costs. Built with industry-leading components, the 190 features a die-cast metal sweep lock for added security, extruded screen frames or optional FlexScreen technology for modern convenience, and premium RENOLIT foils in rich Black and Bronze, as well as classic Clay, Beige, and White PVC finishes. The result is a versatile, durable, and cost-efficient window system designed to perform — and built to last.
